Keith Lee Familee Day 2026 – Event Portal

Welcome to the official event portal. This is your single source of truth for all schedules, site plans, logistics, and updates.

If something changes, it will be posted here first.

Location: UNO Arena + Festival Grounds

  • Show Dates: May 16th, 2026

  • Load-In Begins: May 11, 2026

  • Site Open (Show Ready): May 16 at 12:00 PM

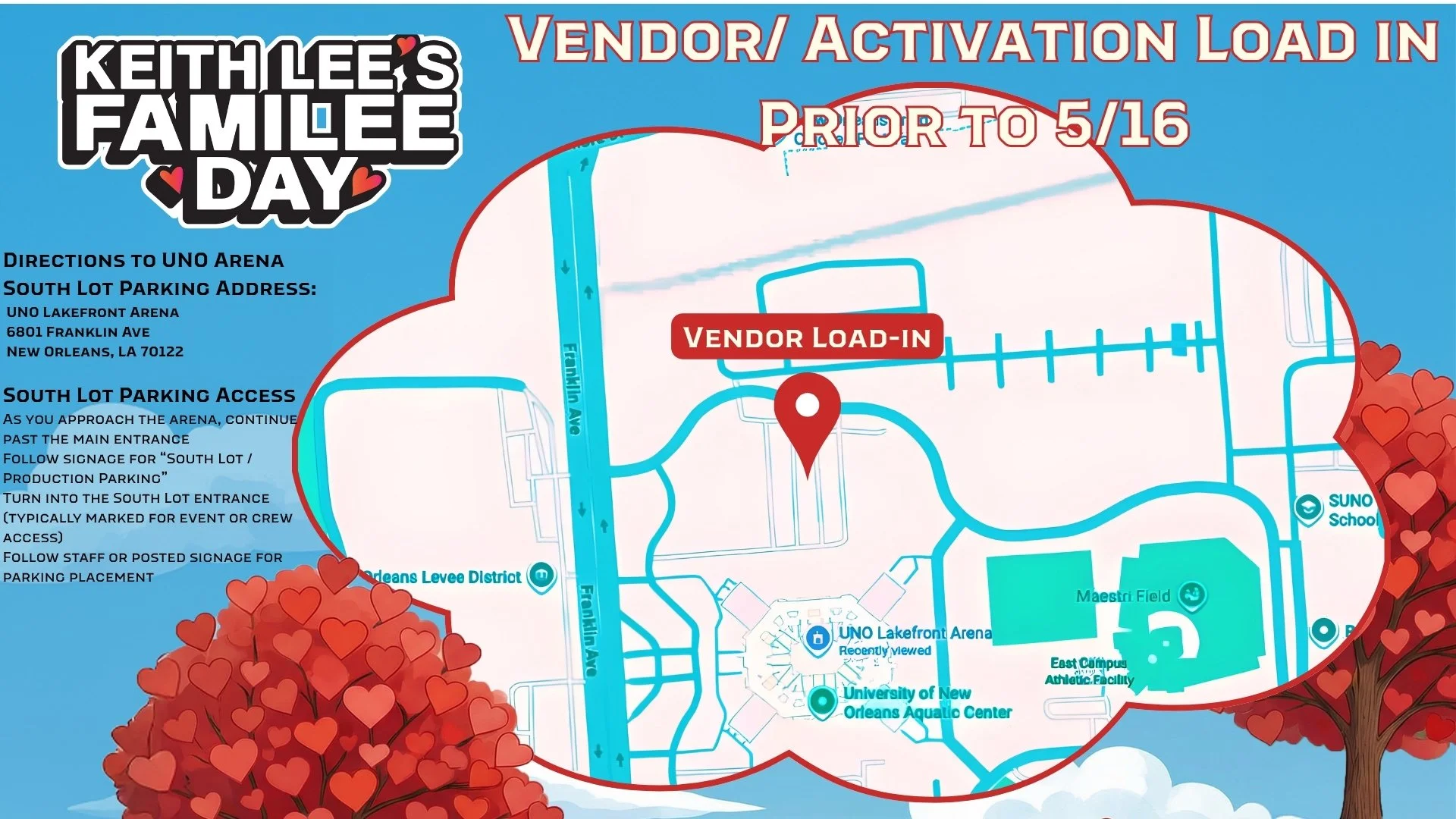

SHIPPING & RECEIVING INSTRUCTIONS

All shipments for Keith Lee Familee Day 2026 must be sent directly to the official receiving location at UNO Arena.

SHIPPING ADDRESS

UNO Arena – Shipping & Receiving
ATTN: Keith Lee Familee Day 2026 / [Your Company Name]
6801 Franklin Ave,

New Orleans, LA

REQUIRED LABELING

All shipments must clearly include:

  • Event Name: Keith Lee Familee Day 2026

  • Company / Vendor Name

  • Onsite Contact Name + Phone Number

  • Booth # or Department (if applicable)

Example:
ATTN: Keith Lee Familee Day 2026 / Vue Show Design Group
Vendor: [Your Company Name]
Contact: [Name + Phone]

DELIVERY WINDOW

  • Shipments will only be accepted during official load-in dates:
    May 11 – May 15, 2026

  • Deliveries outside of this window may be refused or delayed

IMPORTANT NOTES

  • All deliveries must be pre-coordinated with your point of contact

  • The venue is not responsible for lost, delayed, or unattended packages

  • Clearly label all items to avoid misrouting onsite

  • Large freight, pallets, or specialty deliveries must be coordinated in advance

ONSITE RECEIVING

  • All items will be held at the designated receiving area

  • Vendors are responsible for retrieving and transporting their own materials to their assigned location unless otherwise arranged

ACCESS RULES

  • Credentials must be worn and visible at all times

  • Do not share or transfer credentials

  • Lost credentials must be reported immediately

  • Unauthorized access to restricted areas will result in removal

SITE ACCESS POINTS

  • All entry points will be staffed with security

  • Bags and equipment are subject to inspection

  • Access points may vary by role and time of day

LOAD-IN / WORKING DAYS

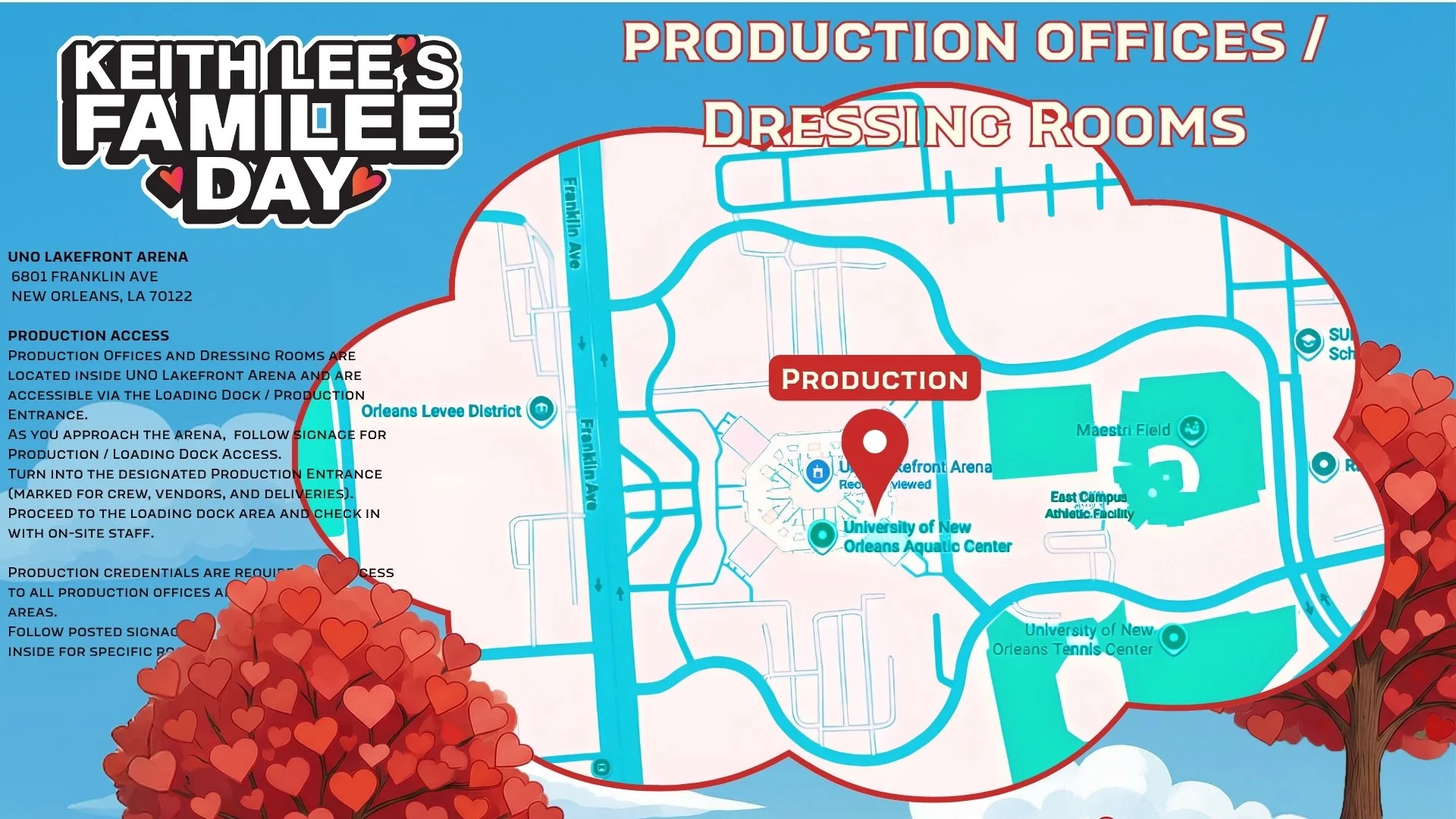

All working credentials must be picked up at:

UNO Arena – KEITH LEE Security Office
(Accessible via the loading dock)

  • Credentials will only be issued to approved personnel

  • Government-issued ID may be required

  • No credential = no site access

EVENT DAYS (SHOW DAYS)

All credentials will be distributed at:

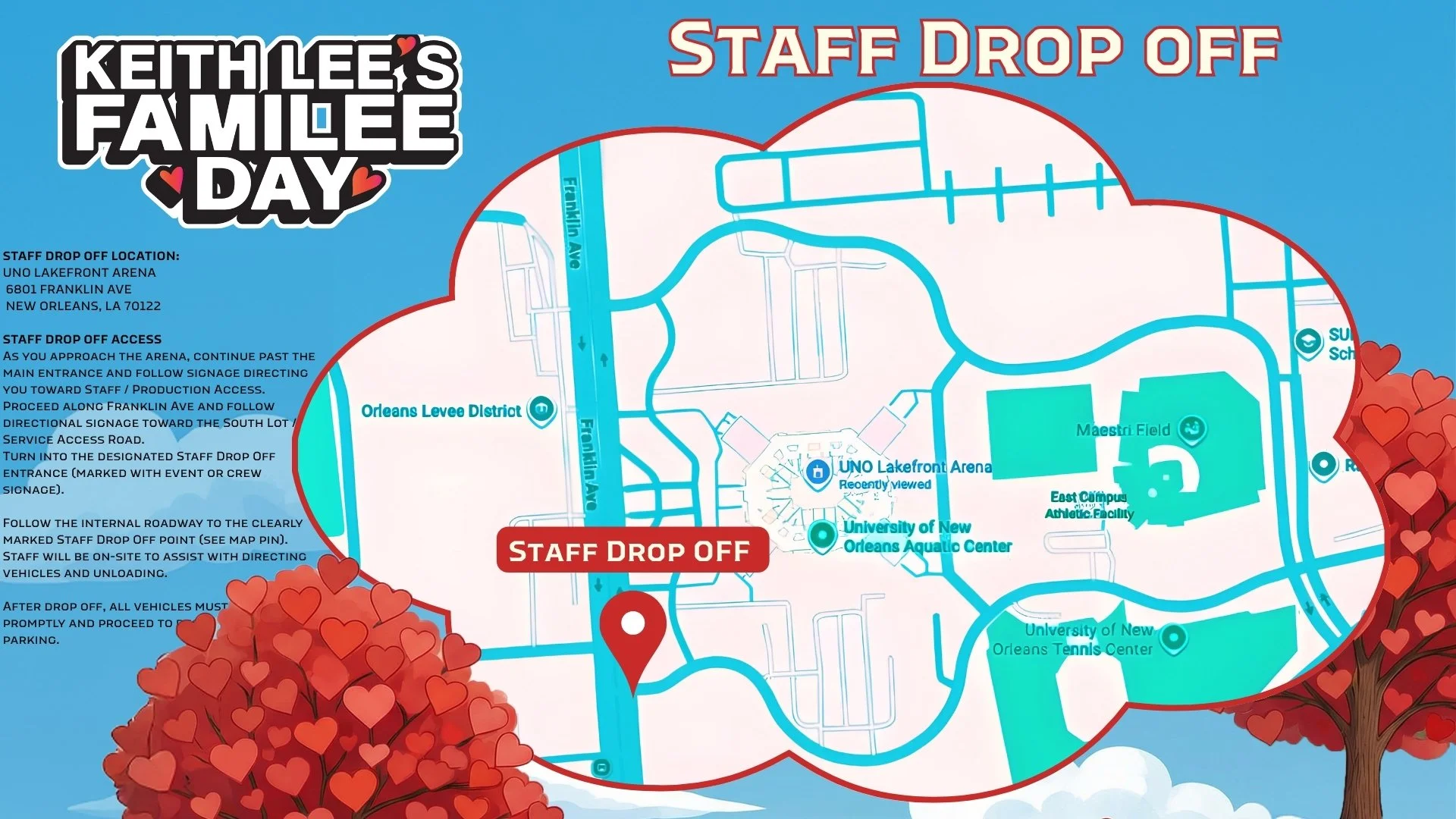

Staff Drop-Off Location

  • Pick-up begins at 7:00 AM

  • Arrive early to avoid delays at access points

CREDENTIAL TYPES

Access will be granted based on credential level:

  • Crew / Production

  • Vendor

  • Sponsor / Activation

  • Staff

  • VIP / Guest

Each credential is zone-specific. Only access areas required for your role.

CREDENTIALS & ACCESS

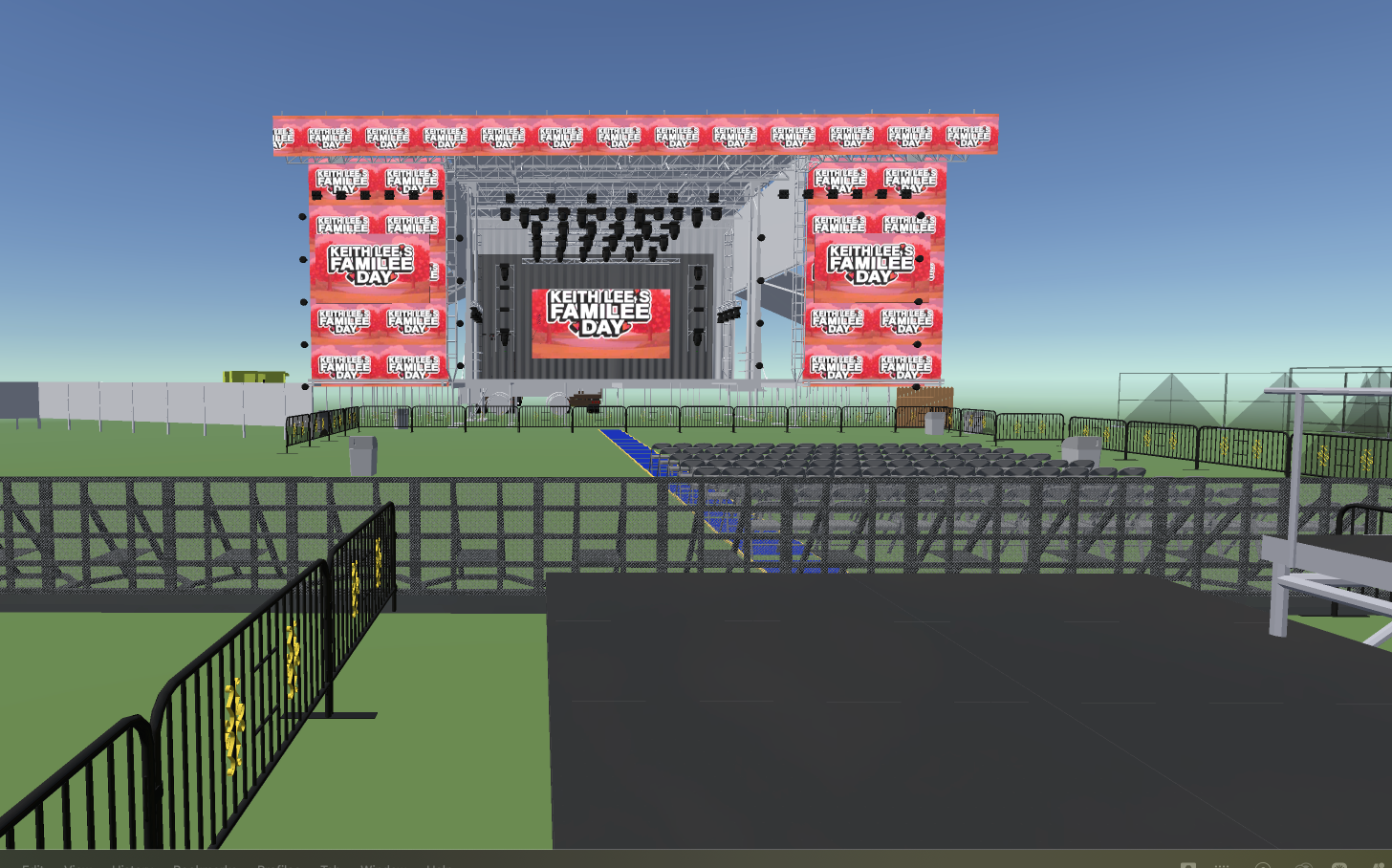

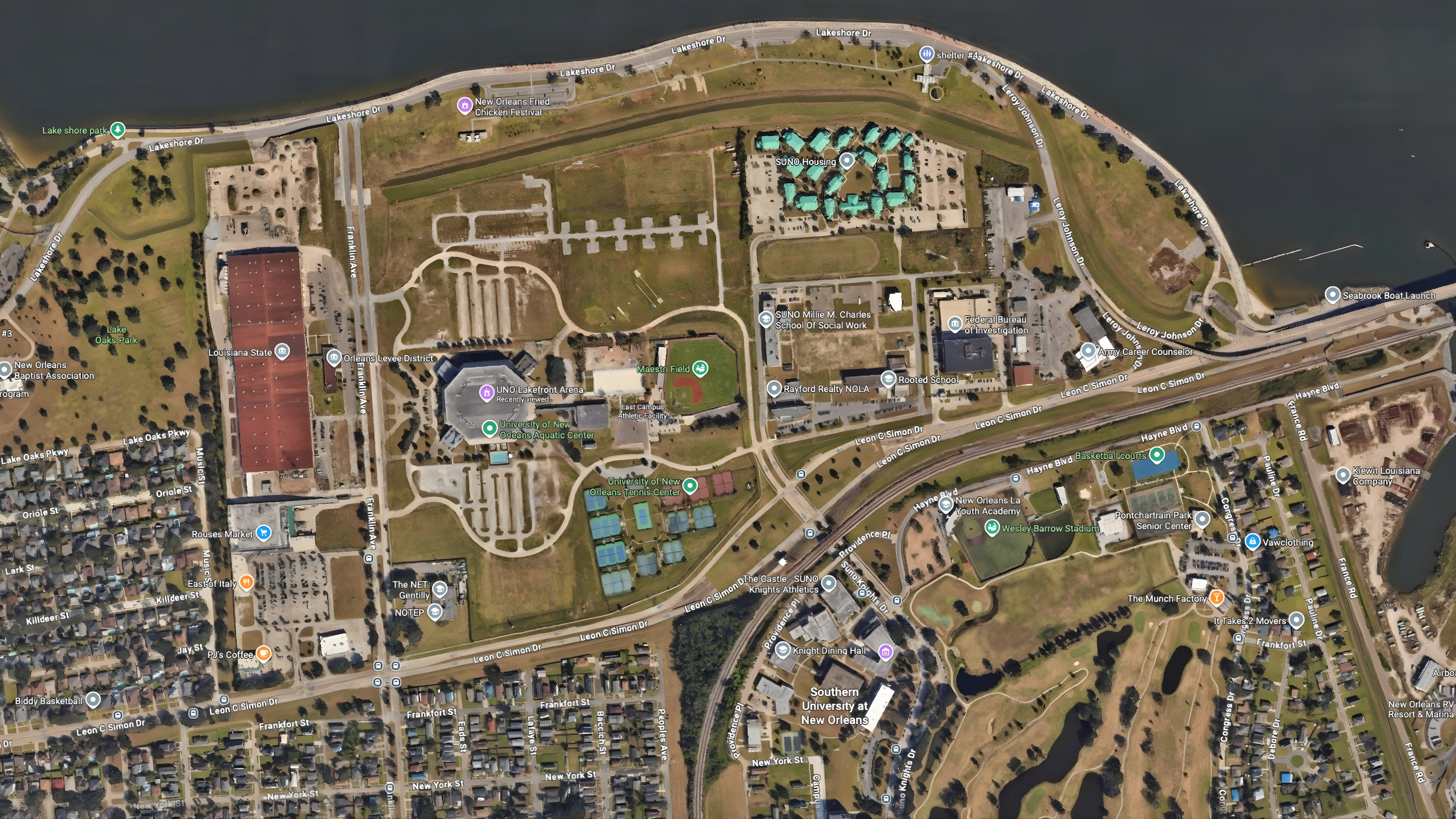

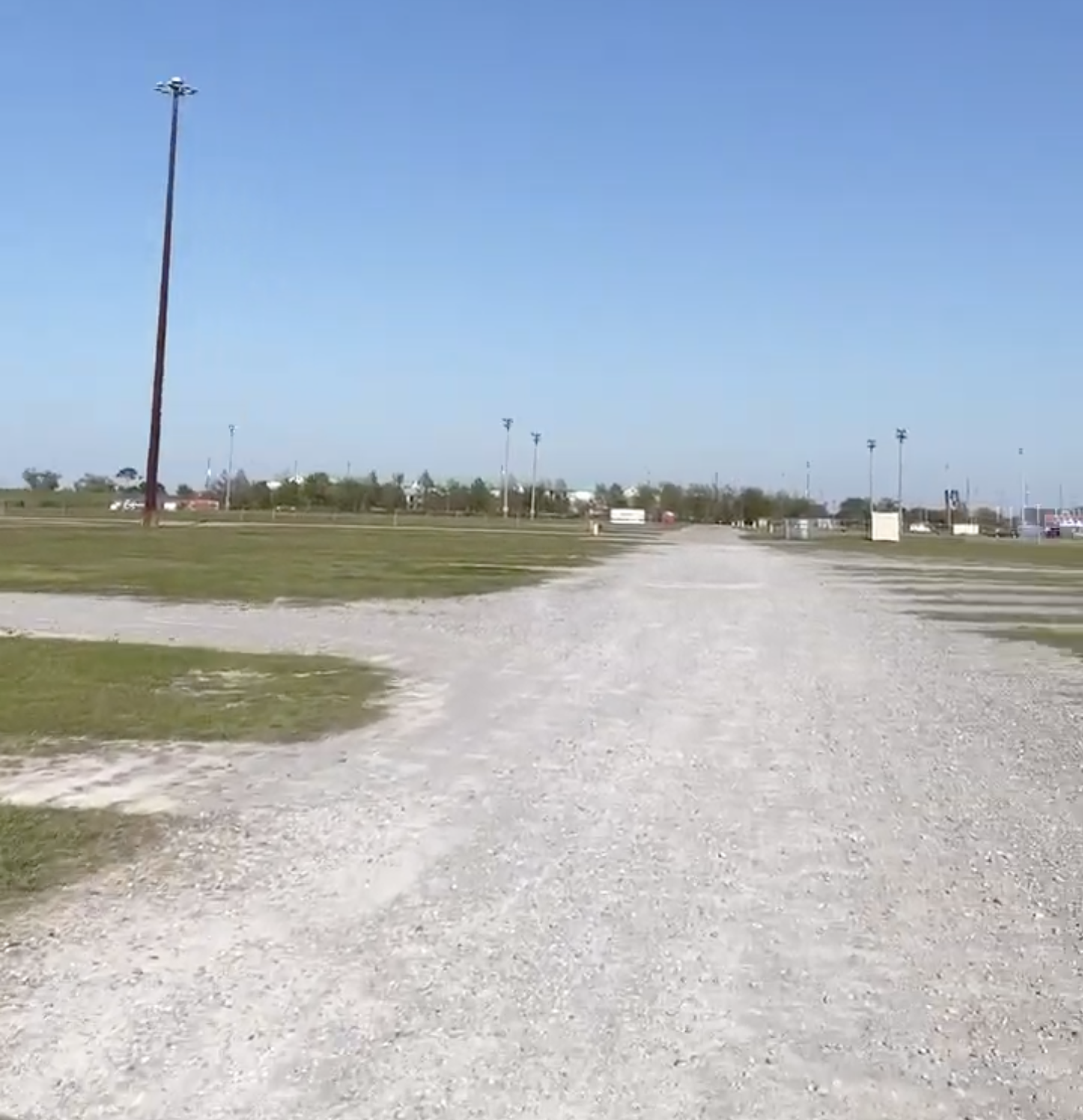

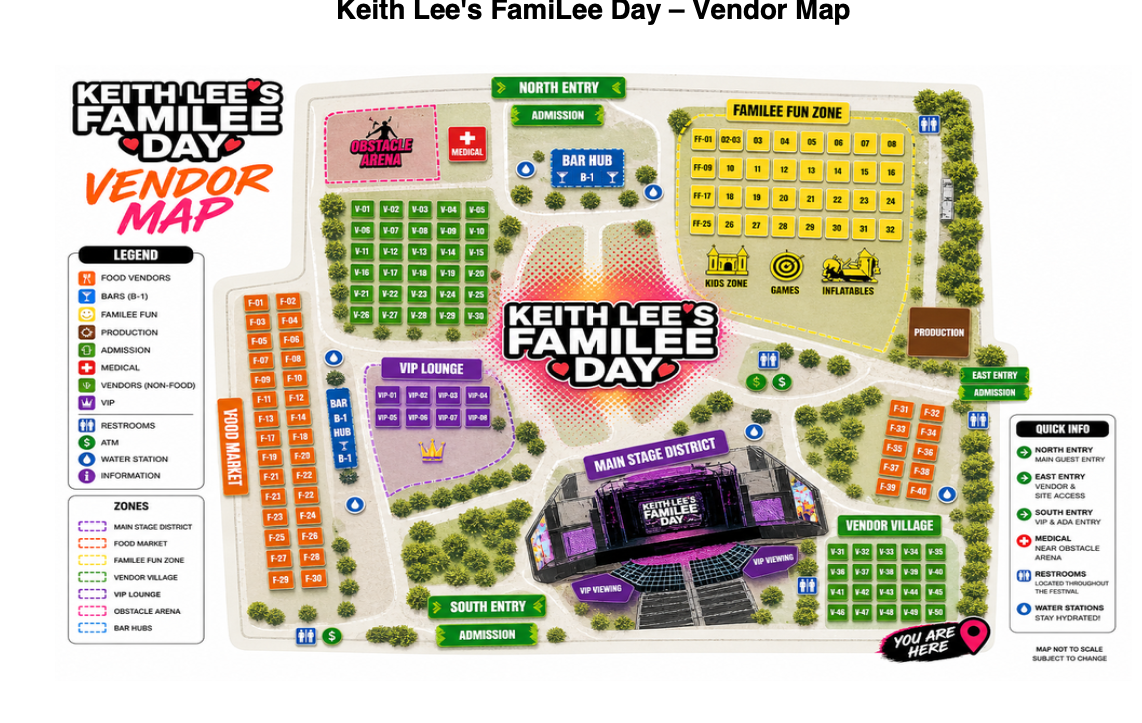

SITE INFORMATION

ARRIVAL INSTRUCTIONS

Barricade Covers Print & Fabrication Instructions

System: Metal Barricade Type 5 (Standard Bike Rack Barricades)

Dimensions & Fit:

  • Designed to fit standard Type 5 metal barricades (~6.5'–7' wide x ~3.5'–4' tall)

  • Covers should be produced as slip-over sleeves (“pillowcase style”) or panel wraps with secure tie points

Material:

  • 8–10 oz Mesh Vinyl (preferred for outdoor/wind)

  • 13 oz Scrim Vinyl (optional for solid look, low-wind areas only)

  • UV printed, weather-resistant, anti-curl

Finishing:

  • Reinforced hems on all sides

  • Velcro closures OR stitched sleeves for slip-over install

  • If panel style:

    • Grommets every 12–18 inches

    • Reinforced corners

Artwork Setup:

  • Build files at full scale

  • Include 1–2” bleed on all sides

  • Keep critical logos/text within a 2” safe margin

  • CMYK color mode, 150 DPI minimum at full size

Installation Notes:

  • Covers should install quickly by sliding over barricades or fastening via zip ties

  • Ensure snug fit to avoid sagging or wind movement

  • All branding should face outward toward guest flow

LINK TO TEMPLATE

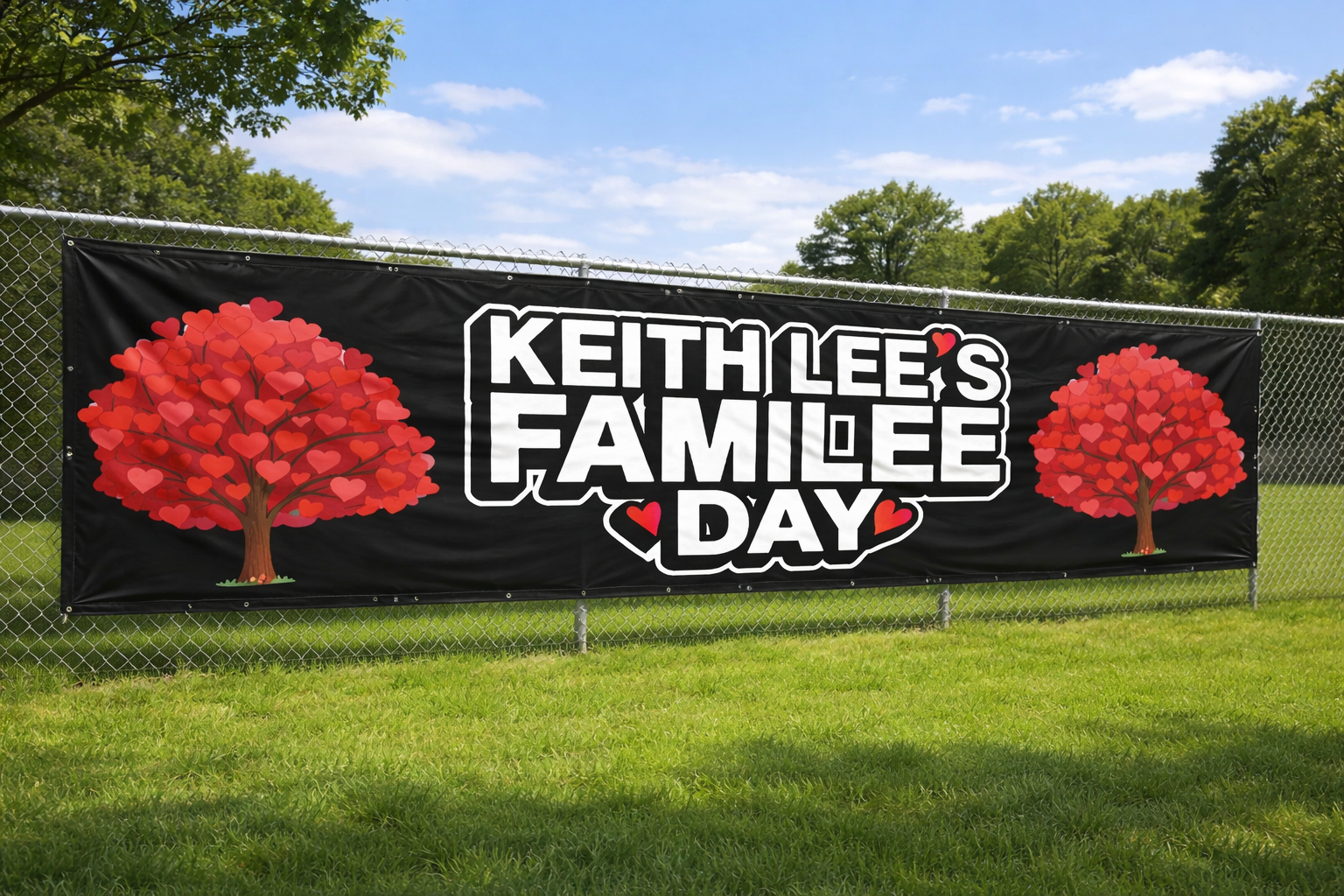

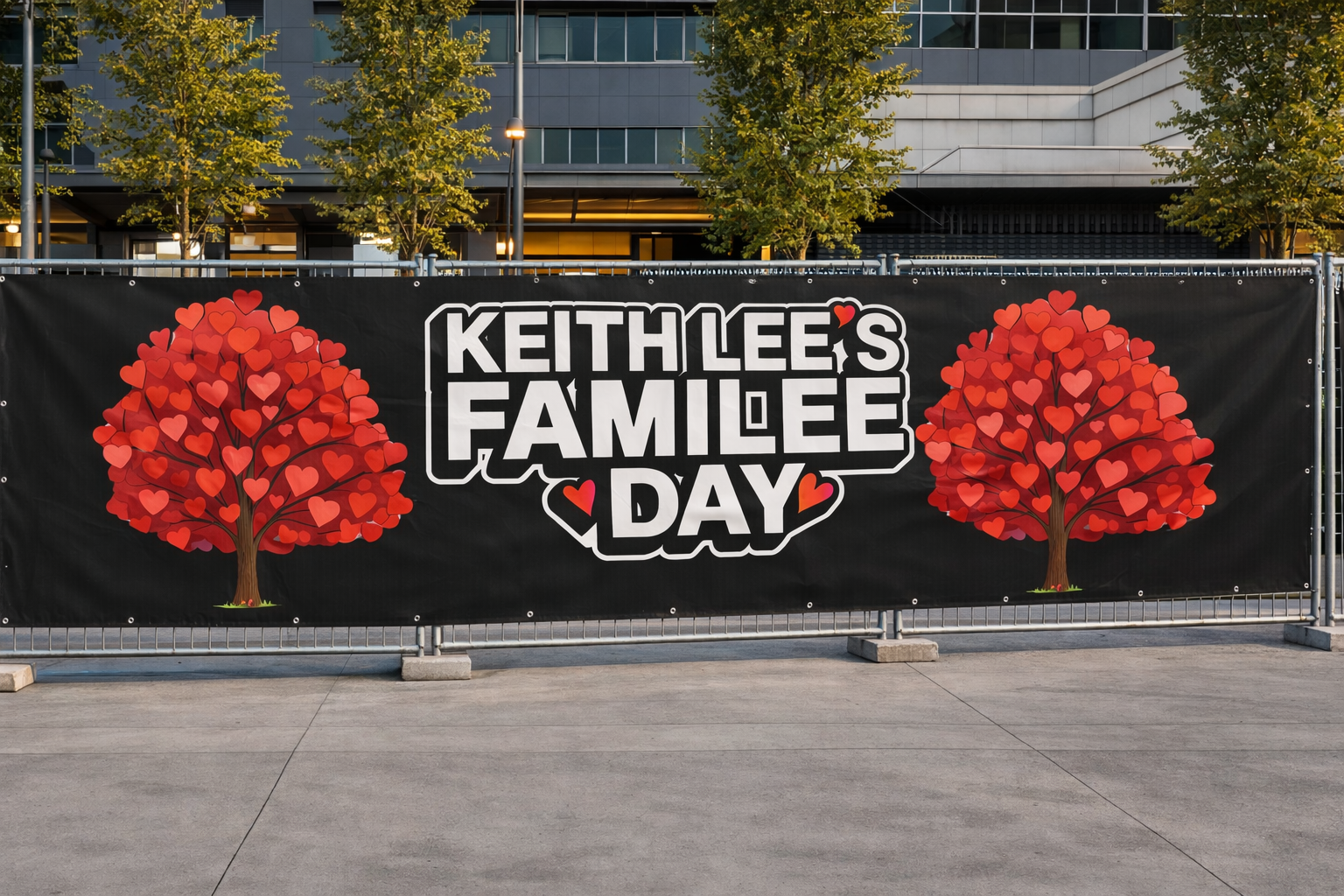

50’ Banner Print & Fabrication Instructions

Size: 50’ Wide x 6’ Tall

Material:

  • Mesh Vinyl (8–10 oz) – REQUIRED for outdoor use

  • Scrim vinyl only if installed in protected / low-wind areas

Finishing:

  • Hems on all sides (1–2”)

  • Grommets every 12–18 inches along all edges

  • Reinforced corners strongly recommended

  • Optional: Pole pockets (top/bottom) if required for specific install

Artwork Setup:

  • Document size: 600” x 72” (50’ x 6’)

  • Include 1–2” bleed

  • Keep all critical content within 3–4” safe margin

  • CMYK color mode

  • Raster images minimum 100–150 DPI at full scale

Seaming:

  • Banner will require panel seaming due to size

  • Ensure seams are:

    • Cleanly aligned

    • Positioned away from key logos/text when possible

Installation Notes:

  • Designed to be mounted to fencing, truss, or barricade lines

  • Use zip ties or bungee ties at all grommet points

  • Tension evenly across the full 50’ span to avoid wrinkles or sagging

  • Plan for wind load — mesh is critical for airflow

LINK TO TEMPLATE

BRAND KIT DOWNLOAD

BRAND KIT

Production Team

Questions?
